How to Replace a Moen 1222 Posi-Temp Shower Cartridge in 20 Minutes

A Moen shower that drips, runs cold for 10 minutes before heating up, or swings wildly between hot and cold almost always has one problem: the 1222 Posi-Temp cartridge. It is the single most replaced shower part in American bathrooms, and swapping it takes about 20 minutes with basic tools.

You do not need to tear out tile. You do not need a plumber. You do not need to replace the valve.

Is the 1222 Really What You Need?

The Moen 1222 Posi-Temp is the pressure-balancing cartridge installed in most Moen single-handle shower valves made after 2009. If your shower has one round handle with a Moen logo and was installed in the last 15 years, it almost certainly has a 1222 inside.

The older Moen shower cartridge is the 1225 or the 1200, which are two-handle or kitchen faucet cartridges, not shower cartridges. Do not confuse them. The 1222 is shower-specific. It is taller, has a flat-sided stem, and has a built-in pressure balance spool to prevent scalding when someone flushes a toilet.

Common symptoms that mean the 1222 is failing:

• Shower drips after you turn it off
• Temperature swings hot and cold on its own
• Handle is hard to turn or feels gritty
• Water does not get as hot as it used to
• Handle spins past the stop point without shutting off

If you have any two of these, replace the cartridge. It is a consumable part. Five to ten years is a normal lifespan in hard water areas.

Tools You Need

Replacement 1222 cartridge ($32.98), Moen 1222 cartridge puller ($9.98), Phillips screwdriver, Allen key set, adjustable pliers, needle-nose pliers, and a towel. In hard water homes, a cartridge puller is not optional. The 1222 cements itself into the brass valve body over time and pulling it with pliers alone will snap the stem.

Step-by-Step Installation

Step 1 - Shut Off Water

Moen shower valves do not have local shutoffs. You have to close the main water supply to the house, or the branch valve if your home has one. Open the shower handle after shutting off to drain pressure and any standing water in the lines. Put a towel over the drain so you do not lose small parts down it.

Step 2 - Remove the Handle

Look under or behind the handle for a small Allen set screw. It is usually on the underside of the lever. Loosen it (do not remove it completely, it is tiny and easy to lose) and pull the handle straight off the stem. If it is stuck from mineral buildup, wiggle gently side to side while pulling.

Step 3 - Remove the Escutcheon and Stop Tube

Unscrew the round chrome trim plate (escutcheon) by hand or with pliers wrapped in a cloth. Behind it is a plastic collar called the stop tube. Slide it off. You will now see the cartridge housing with a brass retainer clip on top.

Step 4 - Pull the Retainer Clip

The retainer clip is a U-shaped piece of metal that locks the cartridge into the valve body. Use needle-nose pliers to pull it straight up and out. Do not lose it. If you drop it down the drain, game over. A new cartridge comes with a spare clip but you need the old one for reference.

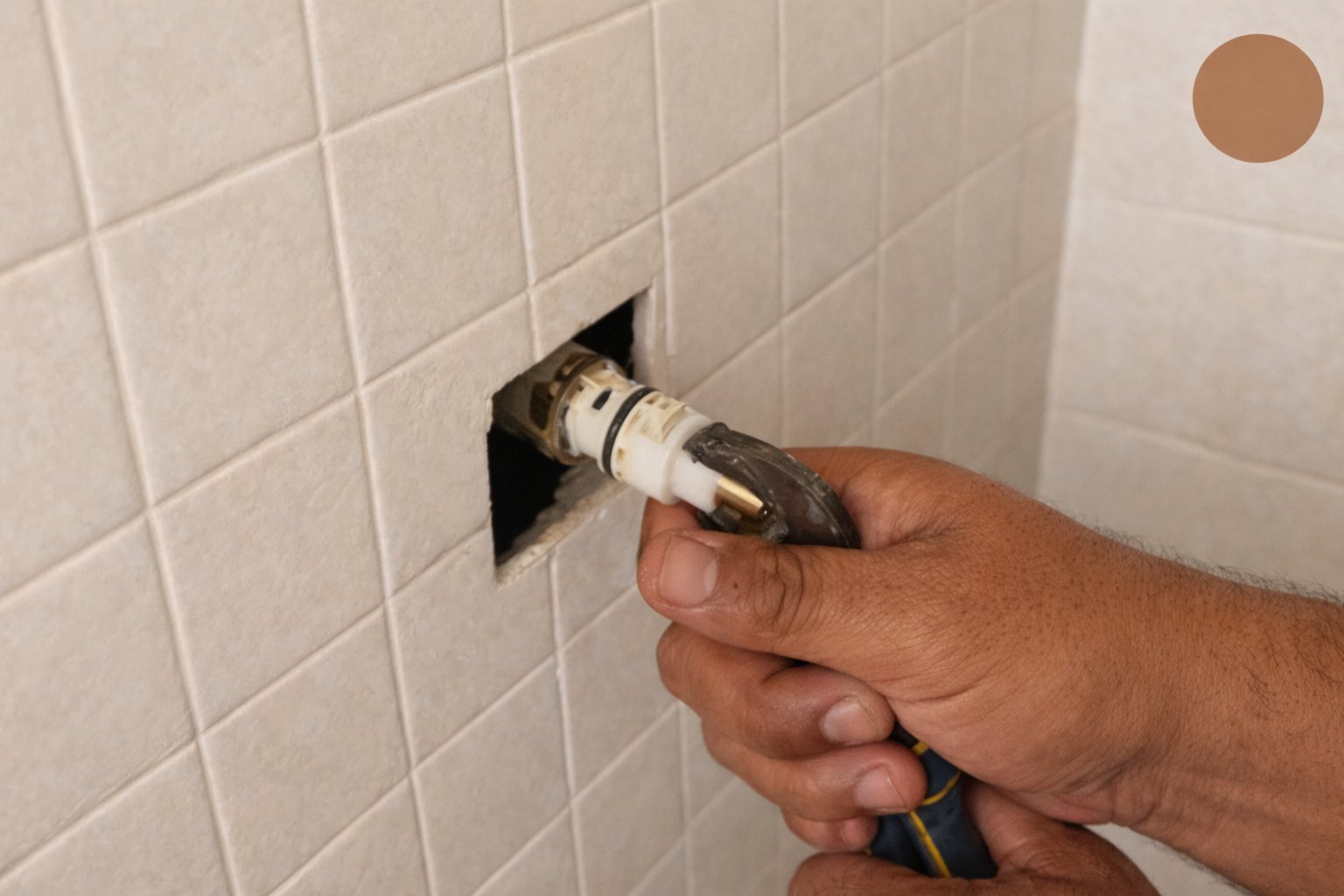

Step 5 - Pull the Old Cartridge

This is where most DIYers give up. The 1222 bonds to the valve body with mineral deposits and will not come out by hand. Slide the Moen 1222 puller tool over the stem, thread it onto the cartridge, and turn the handle. The puller transfers force evenly and pulls the cartridge straight out without snapping the stem.

If you try to pull it with pliers and the stem breaks off inside the valve body, you now have a plumber call. Use the puller.

Step 6 - Clean the Valve Body

Once the cartridge is out, look inside the brass valve body. If you see white crusty buildup, wipe it out with a rag and white vinegar. A clean valve body means the new cartridge seats properly and the O-rings seal correctly.

Step 7 - Install the New Cartridge

Lightly grease the new cartridge O-rings with plumber's grease. Push the cartridge into the valve body with the flat side of the stem facing up (12 o'clock position) and the hot side marker on the correct side. The cartridge should slide in with firm hand pressure. Do not hammer it. If it does not seat, pull it back out and check the orientation.

Step 8 - Reinstall Everything in Reverse

Push the retainer clip back in. Slide the stop tube on. Screw the escutcheon back in place. Push the handle onto the stem and tighten the Allen screw. Turn the water back on slowly.

Step 9 - Test

Run the shower. Check the handle movement. Water should be smooth through the full range of motion. Hot should be hot, cold should be cold. If they are reversed, pull the cartridge and rotate it 180 degrees.

Common Mistakes to Avoid

Skipping the cartridge puller. The number one reason this job goes sideways. The 1222 stem is brass and will snap under pliers if the cartridge is seized. A $10 puller prevents a $300 plumber call.

Forgetting the retainer clip. Without the clip, water pressure will slowly push the cartridge out of the valve body. You will have a major leak inside your wall weeks later and not know where it came from.

Not checking hot and cold orientation. The cartridge goes in one of two ways. One is correct. The other gives you cold water when the handle is on hot. If it feels reversed after install, pull it and flip it.

Overtightening the handle screw. The Allen screw on the handle only needs to be snug. Cranking it down strips the threads on the stem, which means replacing the cartridge again.

Why You Should Replace the Cartridge and Not the Whole Valve

Plumbers often quote $500 to $1,500 to "fix" a leaky Moen shower, which usually means opening the wall and replacing the valve body. That is almost never necessary. The valve body itself is brass and lasts indefinitely. The cartridge is the consumable part. Replace the cartridge, save the wall, save the money.
